ThinkPad Docking Station Orange Light: What It Means & Fixes

Understanding the ThinkPad Docking Station Orange Light

If you’re a user of a ThinkPad docking station, encountering an orange light on the device can be alarming. What does it mean, and how can you rectify this issue? In this article, we will delve into the significance of the orange light on your ThinkPad docking station, explore potential causes for its appearance, and provide effective troubleshooting methods to resolve these problems. By the end, you will have a clearer understanding of what to do when you see that thinkpad docking station orange light.

What Does the Orange Light Indicate?

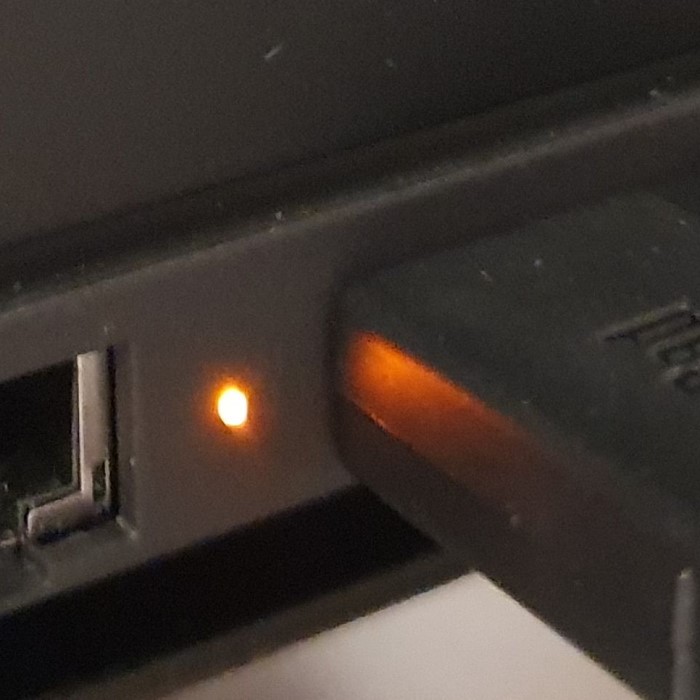

The orange light on a ThinkPad docking station typically serves as a warning indicator. When this light illuminates, it usually means there is a power or connectivity issue that needs to be addressed. Ignoring this warning can lead to more serious problems down the line, including loss of connectivity or complete failure of the docking station.

The orange light can indicate several conditions:

Insufficient Power

1. Definition of Insufficient Power:
   • The orange light appearing on a ThinkPad docking station often indicates that it is not receiving adequate power to operate effectively.
   • This lack of sufficient power can lead to various operational issues, affecting its performance and functionality.
2. Common Causes:

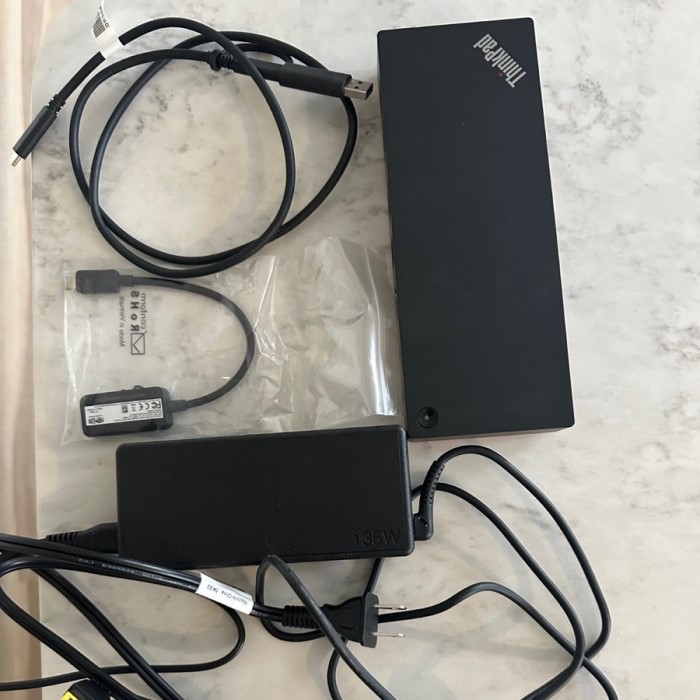

   • One of the most frequent causes of insufficient power is a loose or improperly connected power adapter.
   • Additionally, using an incompatible or faulty power adapter may also result in inadequate power supply to the docking station.
3. Signs of Insufficient Power:
   • Users may notice other symptoms, such as the docking station not powering up fully or failing to charge connected devices.
   • Certain connected peripherals, like monitors or external hard drives, may not function correctly due to this power deficit.
4. Troubleshooting Steps:
   • Always check the connections, ensuring the power adapter is securely plugged into both the docking station and the wall outlet.
   • If necessary, try using a different outlet or a known working power adapter to see if the issue resolves.

Data Transfer Problems

1. Overview of Data Transfer Issues:
   • In addition to power problems, an orange light may indicate complications with data transfer between the docking station and the connected ThinkPad.
   • Data transfer issues can disrupt the use of external devices and peripherals attached to the dock.
2. Common Causes of Data Transfer Problems:
   • Issues may stem from loose cables, misalignment in the connection ports, or defective cables used to connect between devices.
   • Software problems, such as outdated drivers or firmware on either the docking station or the ThinkPad, can also lead to data transfer failures.
3. Symptoms of Data Transfer Issues:
   • Users may experience intermittent connectivity with peripherals, such as external monitors, keyboards, or mice.
   • Additionally, data transfer rates may slow down significantly, or devices may not be recognized at all.
4. Troubleshooting Steps:
   • Ensure that all connections between the docking station and the laptop are secure and correctly aligned.
   • Regularly update the docking station and laptop’s firmware or drivers to maintain compatibility and performance.

Low Power State

1. Understanding Low Power State:
   • The docking station can enter a low-power state due to certain conditions, such as prolonged inactivity.
   • This state is generally designed to conserve energy but can sometimes trigger the orange warning light.
2. Common Triggers for Low Power State:
   • Extended periods of non-use or inactivity may prompt the docking station to enter this state automatically.
   • Hardware malfunctions or software settings may also cause the dock to behave as if it is in a low-power mode, even if it is powered correctly.
3. Symptoms of Low Power State:
   • When in a low-power state, users might notice slower response times from connected devices or peripheral devices not functioning at all.
   • The docking station may fail to wake from this state if there’s a connection issue or hardware fault.
4. Troubleshooting Steps:
   • If you suspect your dock is in a low-power state, try disconnecting and reconnecting your laptop to see if it re-establishes functionality.
   • Adjust any settings on the ThinkPad that may control power management on the docking station to prevent premature low-power activation.

Understanding the orange light’s implications is the first step toward effective troubleshooting.

Common Reasons for the Orange Light

Power Connection Faults

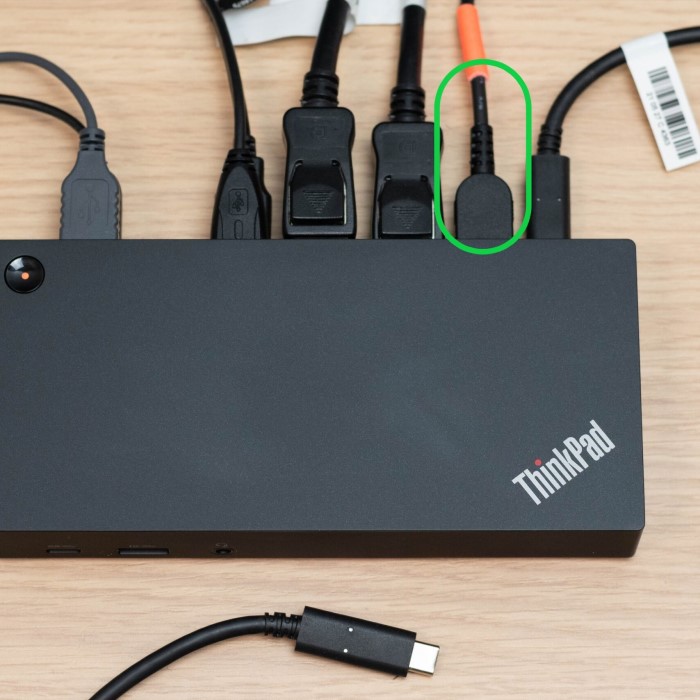

One of the most frequent causes for the thinkpad docking station orange light is inadequate power supply. Always check that the power adapter is properly connected to both the docking station and the electrical outlet. If the connection is loose or the outlet is faulty, it can lead to an insufficient power supply.

If you notice that your docking station has an orange light, start by inspecting the power adapter. Ensure it’s functioning correctly by trying a different wall outlet, or, if possible, use another compatible adapter to see if the problem persists.

Problems with Data Connection

Another significant reason for the orange light is issues related to the data connection. Your laptop must be securely connected to the docking station. A mid-connection lock or faulty port alignment might prevent proper communication between the two devices.

Check for any debris, dust, or physical damage to the docking port. When cleaning, avoid using harsh substances. A gentle blow of compressed air should suffice to clear any obstructions.

Hardware Malfunction

If your connections appear to be secure but the orange light persists, consider the possibility of a hardware malfunction. Several components inside the docking station might be malfunctioning. The hardware could be failing, which might require professional attention or a replacement if it is under warranty.

In any case, diagnosing hardware limitations can sometimes necessitate an expert examination, so don’t shy away from reaching out to Lenovo support.

How to Troubleshoot the Orange Light Issue

Step 1: Initial Investigation of Power Supply

Begin your troubleshooting process by confirming the power supply. Ensure that the power adapter is properly plugged into both the docking station and the wall outlet. If applicable, try a different outlet. Many users overlook power source issues, so this step might solve the problem.

Step 2: Verify Data Connection Stability

After checking the power supply, turn your attention to the data connection. Ensure the ThinkPad is securely seated in the docking station without any misalignment. Remove the laptop, check the connecting port on both the laptop and the dock for debris, and reconnect it firmly.

When troubleshooting, repeated disconnections and reconnections can sometimes recalibrate your devices efficiently, eliminating the error.

Step 3: Performing a Hard Reset

Sometimes, the most effective method to resolve the orange light issue is by performing a hard reset. To do this, follow these steps:

1. Disconnect the power adapter from the docking station.
2. Remove your laptop from the dock.
3. Wait approximately 10-15 seconds to ensure that any residual power dissipates from both devices.
4. Reconnect the docking station to the power source and then attach your ThinkPad.

After following these steps, check to see if the orange light persists. If it does, consider the next steps outlined below.

Step 4: Software and Firmware Updates

In a digital age, keeping your devices updated can often mitigate technical issues. Ensure that both your ThinkPad and docking station have the latest firmware installed. Check Lenovo’s official website or the manufacturer’s support page for any updates available.

Sometimes, outdated software can create compatibility issues that lead to hardware malfunctions. Regularly updating your devices keeps everything running smoothly and often solves minor technical glitches.

Step 5: Consult Lenovo Technical Support

If you have followed all troubleshooting steps and continue to face issues with the orange light, it is time to consult Lenovo’s technical support. They have the tools and know-how to diagnose deeper-rooted issues that may be out of the user’s control.

Their professional assistance can provide valuable insights and may lead to a solution that isn’t immediately apparent to you. Depending on warranty conditions, you may also explore replacement options if your docking station is fundamentally defective.

Frequently Asked Questions

Why is my Lenovo docking station light orange?

The orange light on your Lenovo docking station indicates a potential issue with either the device’s power supply or data connection. This warning light typically means that the dock isn’t receiving sufficient power from the source or that there is a communication failure with the connected laptop.

How do I reset my ThinkPad docking station?

To reset your ThinkPad docking station, first, disconnect the power adapter. After that, remove your laptop from the docking station. Waiting for about 10-15 seconds allows all residual power to dissipate. Finally, reconnect the power adapter to the dock and reattach your ThinkPad.

What does an orange light mean on a ThinkPad?

An orange light on a ThinkPad generally signifies an issue with the docking station itself — typically related to power or connectivity. Immediate attention to the dock’s connections is advisable to avoid operational problems.

Preventing Future Orange Light Issues

After addressing the initial orange light challenge, your focus should shift toward prevention strategies that can ensure you don’t encounter the issue again:

Routine Maintenance Checks

Conducting regular maintenance checks on both your docking station and laptop can prevent potential problems. Make it a habit to inspect power and data connections periodically to catch any wear and tear in advance.

Invest in Quality Accessories

Using the OEM (original equipment manufacturer) power adapters and connectors can significantly lower the chances of encountering issues. Low-quality or incompatible accessories can easily lead to power failures and connectivity problems.

Stay Current with Firmware Upgrades

Always keep your ThinkPad and docking station updated with the latest firmware and drivers. Lenovo frequently releases updates that enhance device performance, contribute to compatibility, and fix any existing bugs that might cause problems.

Conclusion

In conclusion, the thinkpad docking station orange light serves as a crucial indicator of potential connection or power issues. Understanding its implications helps ensure you can troubleshoot effectively. Following the problem-solving steps outlined above can save time and stress in the long run.

Moreover, adopting preventive strategies like routine maintenance and staying current with software updates can significantly reduce the likelihood of encountering the orange light warning again. If problems persist, don’t hesitate to reach out to Lenovo support for professional assistance. By taking the correct steps, you can enjoy seamless operations with your ThinkPad docking station and ensure it functions optimally for your needs.
